Java Arrays - Complete Guide

Master all Java array types with detailed explanations, memory diagrams, and practical examples. Arrays are fundamental data structures for storing multiple values of the same type.

1. Introduction to Java Arrays

An array stores multiple values of the same type in contiguous memory. Array length is fixed after creation and indexed from zero.

  • Fixed size once created
  • Zero-based indexing
  • Length property, not method
  • Reference type stored on heap

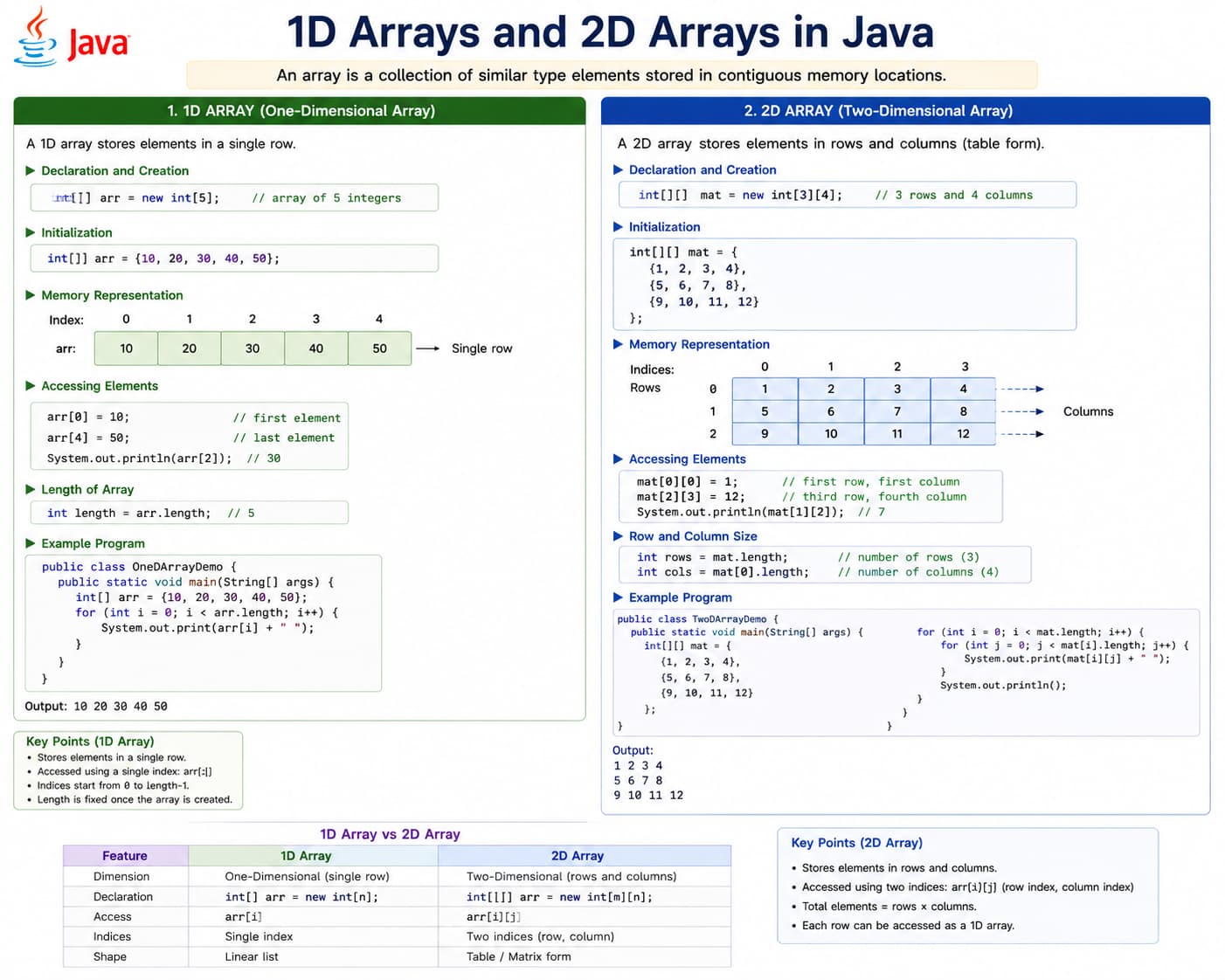

Diagram of Java arrays: one-dimensional, two-dimensional, and indexed layout
Java arrays overview: 1D arrays use index 0…n-1; 2D arrays are arrays of arrays; length is fixed after creation.

Array essentials

Fixed length, zero-based index, same element type — 2D arrays are arrays of arrays.

Array basics
public class ArrayIntro {
    public static void main(String[] args) {
        int[] scores = {90, 85, 78};
        System.out.println(scores[0]);
        System.out.println(scores.length);
    }
}

2. Initialization, Storing, and Accessing

An array variable holds a reference to an array object on the heap. Elements are stored in indexed slots starting at 0.

Ways to initialize arrays

Style Syntax When to use
Declare + allocate int[] a = new int[5]; Size known; values filled later (defaults: 0, false, null)
Literal shorthand int[] a = {10, 20, 30}; Known values at creation
Anonymous array method(new int[]{1, 2}); One-time argument without a variable
2D allocation int[][] m = new int[3][4]; Rectangular matrix (3 rows × 4 columns)

Storing and accessing values

  • Store: arr[index] = value;
  • Read: value = arr[index];
  • 2D: matrix[row][col] — row first, then column
  • Length: arr.length (1D) or matrix.length / matrix[i].length (2D)
Initialize, store, access
public class InitAccess {
    public static void main(String[] args) {
        // 1D: literal init
        int[] marks = {78, 92, 85};

        // 1D: allocate then store
        String[] names = new String[2];
        names[0] = "Asha";
        names[1] = "Ravi";

        // Access
        System.out.println(marks[1]);      // 92
        marks[2] = 88;                     // update

        // 2D: store and access
        int[][] seats = new int[2][3];
        seats[0][0] = 101;
        seats[1][2] = 203;
        System.out.println(seats[1][2]);   // 203
    }
}

3. One-Dimensional Arrays — Applications

A 1D array is a single row of values. Use it when data is a sequence of the same type.

Application Example data
Student marks in one subject{78, 92, 85, 60}
Daily temperature readings{32, 31, 33, 30}
Product prices in a cart{499, 1200, 250}
Roll numbers of a class{101, 102, 103}
Search / sort / find max-minAlgorithms on a single list
1D — find highest mark
public class OneDApp {
    public static void main(String[] args) {
        int[] marks = {78, 92, 85, 60};
        int max = marks[0];
        for (int i = 1; i < marks.length; i++) {
            if (marks[i] > max) max = marks[i];
        }
        System.out.println("Highest mark: " + max);
    }
}

4. Two-Dimensional Arrays — Applications

A 2D array is an array of arrays — think rows and columns. Access with matrix[row][col].

Application Rows × meaning
Class marks (students × subjects)Each row = one student, each column = one subject
Cinema seat bookingRow = seat row, column = seat number
Chess / tic-tac-toe boardGrid of cells
Spreadsheet-like tablesTabular reports
Image pixels (grayscale)Height × width brightness values
2D — student marks table
public class TwoDApp {
    public static void main(String[] args) {
        // 3 students, 2 subjects (Math, Science)
        int[][] marks = {
            {78, 85},
            {92, 88},
            {60, 72}
        };
        int student = 1, subject = 0;
        System.out.println("Student 2 Math: " + marks[student][subject]);

        for (int r = 0; r < marks.length; r++) {
            for (int c = 0; c < marks[r].length; c++) {
                System.out.print(marks[r][c] + "\t");
            }
            System.out.println();
        }
    }
}

5. Array Operations and Time Complexity

Common operations on arrays and their typical time complexity (n = number of elements; for 2D, n ≈ rows × columns).

Operation 1D example Time complexity Notes
Access by index arr[i] O(1) Direct jump to slot
Update by index arr[i] = x O(1) Same as access
Search (unsorted) Find value 42 O(n) May scan entire array
Search (sorted) Binary search O(log n) Requires sorted data
Traverse all elements for / for-each loop O(n) Visit each element once
Sum / average / max One pass loop O(n) Linear scan
Sort Arrays.sort(arr) O(n log n) Built-in dual-pivot quicksort
Copy Arrays.copyOf(arr, len) O(n) Copies every element
Insert/delete in middle Shift elements O(n) Arrays are fixed size — use ArrayList for frequent inserts
2D access matrix[r][c] O(1) Two index lookups
2D traverse all Nested loops O(rows × cols) Every cell visited once
Operations — sum, search, sort
import java.util.Arrays;

public class ArrayOps {
    public static void main(String[] args) {
        int[] data = {40, 10, 30, 20};

        // Traverse + sum — O(n)
        int sum = 0;
        for (int x : data) sum += x;

        // Linear search — O(n)
        int target = 30, index = -1;
        for (int i = 0; i < data.length; i++) {
            if (data[i] == target) { index = i; break; }
        }

        // Sort — O(n log n)
        Arrays.sort(data);

        System.out.println("Sum: " + sum + ", index of 30: " + index);
        System.out.println(Arrays.toString(data));
    }
}

Why arrays are fast for access

Index access is O(1) because the address of arr[i] is computed from base address + (i × element size). Trade-off: fixed length and costly middle insert/delete compared to linked structures.

6. Jagged Arrays — Why Use Them?

In Java, a 2D array is really an array of row arrays. A jagged array has rows of different lengths — not a perfect rectangle.

Why jagged arrays?

  • Save memory — no wasted slots when each row needs a different size
  • Real data is uneven — students take different numbers of optional subjects; a triangle of numbers has 1, then 2, then 3 elements per row
  • Sparse tables — most rows are short; only some rows are long
  • Flexibility — each row is its own int[] object on the heap
Rectangular 2D Jagged 2D
new int[3][4] — every row has 4 columns new int[3][] — row 0 has 1 col, row 1 has 2, etc.
Class marks: same subjects for all students Each student’s optional subject list differs
Jagged — triangle pattern
public class JaggedArray {
    public static void main(String[] args) {
        int[][] triangle = new int[4][];  // 4 rows, lengths assigned later
        for (int r = 0; r < triangle.length; r++) {
            triangle[r] = new int[r + 1];  // row r has (r+1) elements
            for (int c = 0; c < triangle[r].length; c++) {
                triangle[r][c] = r + c;
            }
        }
        System.out.println("Row 2 length: " + triangle[2].length);  // 3
    }
}

7. Three-Dimensional Arrays — Why and Where Used?

A 3D array adds one more index: arr[depth][row][col] or arr[x][y][z]. It is an array of 2D arrays (or array of arrays of arrays).

Why 3D arrays?

  • Model data that has three natural dimensions (not just rows and columns)
  • Keep related values together in one structure instead of many separate 2D arrays
  • Useful in graphics, simulation, and scientific code where a “cube” of values is natural

Where 3D arrays are used

Domain What the 3 dimensions represent
RGB images Height × width × 3 color channels (R, G, B)
3D graphics / games Volume grid (x, y, z) for voxels or temperature field
Time-series grids Day × hour × sensor reading
Exam data Batch × student × subject marks
Cinema halls Screen × row × seat status
3D — batch of student marks
public class ThreeDArray {
    public static void main(String[] args) {
        // 2 batches, 2 students each, 3 subjects
        int[][][] marks = {
            { {78, 85, 90}, {92, 88, 80} },   // batch 0
            { {70, 75, 72}, {65, 68, 70} }    // batch 1
        };
        int batch = 0, student = 1, subject = 2;
        System.out.println("Batch 1, Student 2, Subject 3: "
            + marks[batch][student][subject]);  // 80

        // Allocate explicitly: 2 floors, 3 rows, 4 seats
        boolean[][][] seats = new boolean[2][3][4];
        seats[0][1][2] = true;  // floor 0, row 1, seat 2 booked
    }
}
Practical note: For most business apps, 1D and 2D arrays (or ArrayList) are enough. Use 3D when the problem truly has three indices. Deep nesting hurts readability — consider classes or records (e.g. Batch → List<Student>) for complex data.

8. Array Best Practices

Arrays are fast but fixed-size. Modern Java often prefers ArrayList for dynamic collections while arrays remain essential for performance-critical code.

  • Check bounds before accessing index
  • Use Arrays.copyOf instead of manual copy
  • Prefer List when size changes often
  • Use enhanced for to avoid index errors
  • Consider Arrays.stream for processing
