Java Programming Control Flow Study Guide

Java Control Statements - Complete Guide

Master all Java control statements with detailed explanations, diagrams, and practical examples. Control statements determine the flow of program execution based on conditions.

1. Introduction to Control Statements

Control statements change program flow based on conditions. Java provides if, else-if, else, and switch for branching decisions.

  • Conditions must evaluate to boolean
  • Blocks use curly braces for multiple statements
  • switch works with int, enum, String (Java 7+)
  • Ternary operator for simple assignments

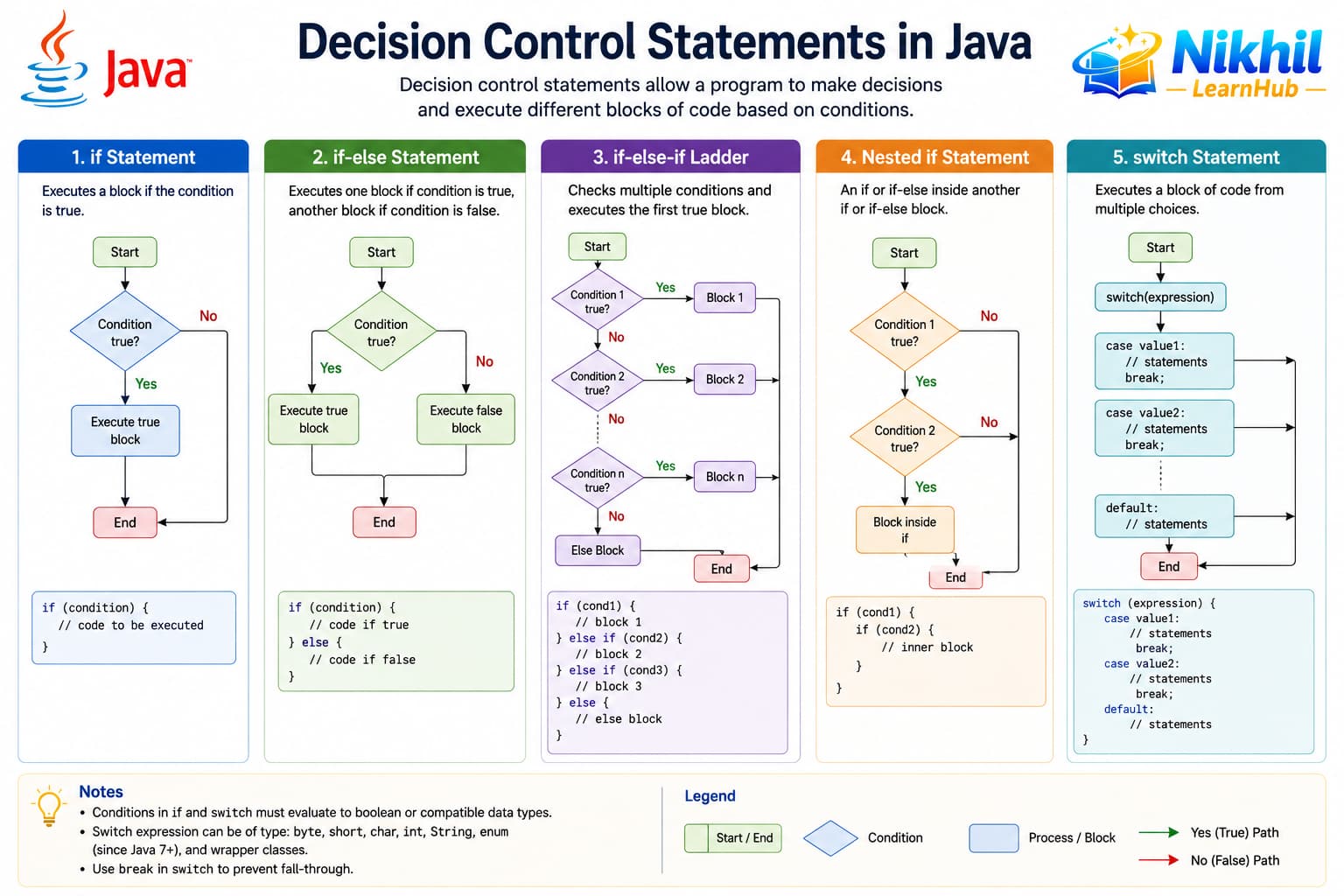

Diagram of if, if-else, else-if, and switch
Decision making: if, if-else, else-if ladder, and switch control non-linear program flow.
Simple branch
public class ControlIntro {
    public static void main(String[] args) {
        int score = 85;
        if (score >= 60) {
            System.out.println("Pass");
        }
    }
}

2. Control Statements Reference

Each control structure fits different decision patterns. if-else chains handle ranges; switch handles discrete matching values.

  • if — single condition
  • if-else — two branches
  • else-if ladder — multiple ranges
  • switch — match constant values
  • Ternary — compact if-else expression
Statement Syntax idea When to use
ifRun block when condition is trueSingle branch decision
if-elseTwo mutually exclusive pathsBinary choice
else-ifChain multiple conditionsMany ranges or categories
switchMatch value to casesMany discrete constants
Nested ifif inside another ifCompound conditions

3. The if Statement

The if statement executes a block when its condition is true. Omitting braces works for one statement but braces are recommended for clarity.

  • Condition in parentheses
  • Block in curly braces
  • Only runs when condition is true
  • Can nest if inside if
if example
public class IfDemo {
    public static void main(String[] args) {
        int temp = 35;
        if (temp > 30) {
            System.out.println("Hot day");
        }
    }
}

4. if-else and else-if Ladders

if-else chooses between two paths. else-if chains test multiple conditions in order until one matches.

  • else runs when if condition is false
  • Only one branch executes in else-if chain
  • Order conditions from most specific to general
  • Final else catches remaining cases
else-if ladder
public class GradeDemo {
    public static void main(String[] args) {
        int marks = 78;
        if (marks >= 90) System.out.println("A");
        else if (marks >= 75) System.out.println("B");
        else System.out.println("C");
    }
}

5. The switch Statement

switch compares one expression against multiple case labels. break prevents fall-through to the next case unless intentional.

  • Works with int, char, byte, short, enum, String
  • Use break to exit after a case
  • default handles unmatched values
  • Java 14+ switch expressions return values
switch example
public class SwitchDemo {
    public static void main(String[] args) {
        int day = 3;
        switch (day) {
            case 1: System.out.println("Mon"); break;
            case 2: System.out.println("Tue"); break;
            case 3: System.out.println("Wed"); break;
            default: System.out.println("Other");
        }
    }
}

6. Control Flow Best Practices

Readable branching logic is easier to test and maintain. Avoid deeply nested conditions when early returns or helper methods help.

  • Always include default in switch
  • Use braces even for single statements
  • Prefer switch for many discrete values
  • Extract complex conditions into boolean variables
  • Avoid deep nesting beyond 2-3 levels

7. When to Use if, if-else, else-if, Nested if, and switch

Imagine a shopping mall billing system. At checkout, the cashier applies discounts based on membership, bill amount, and special offers. The same business rules can be written in different ways — choose the structure that matches how many decisions you need.

Structure When to use (mall discount) Branches
if One optional action — no alternative path needed 1 (do or skip)
if-else Exactly two outcomes — member vs non-member 2
else-if ladder Three or more ordered ranges — bill slabs or tier levels 3+
Nested if Decision inside another decision — member and bill amount Layered
switch Match one variable to fixed labels — membership type or coupon code Discrete cases

Shared scenario for all examples below:

  • billAmount — total purchase in rupees
  • isMembertrue if the customer has a mall card
  • membershipType"GOLD", "SILVER", or "REGULAR"
  • isFestivalSaletrue during festival week

Use if — one condition, one action

Apply an extra festival discount only when the sale is on. If it is not a festival, nothing extra happens — no else needed.

if — festival bonus only
double billAmount = 4200;
boolean isFestivalSale = true;
double discount = 0;

if (isFestivalSale) {
    discount = billAmount * 0.05;  // extra 5% during festival
}
System.out.println("Festival discount: Rs " + discount);

Use if-else — exactly two paths

Members get 10%; everyone else gets 0%. Only two outcomes — perfect for if-else.

if-else — member vs non-member
double billAmount = 3500;
boolean isMember = false;
double discount;

if (isMember) {
    discount = billAmount * 0.10;
} else {
    discount = 0;
}
System.out.println("Discount: Rs " + discount);

Use else-if ladder — many ordered categories

Discount by bill slab: high spenders get more. Test from highest slab downward so only one branch runs.

else-if — bill amount slabs
double billAmount = 12000;
double discountPercent;

if (billAmount >= 10000) {
    discountPercent = 20;
} else if (billAmount >= 5000) {
    discountPercent = 10;
} else if (billAmount >= 2000) {
    discountPercent = 5;
} else {
    discountPercent = 0;
}
System.out.println("Slab discount: " + discountPercent + "%");

Use nested if — condition depends on another condition

First check membership; inside that, check bill amount for a bigger Gold bonus. Nested if fits when the inner rule only matters if the outer rule is true.

nested if — member + high bill
double billAmount = 8000;
boolean isMember = true;
double discount = 0;

if (isMember) {
    discount = billAmount * 0.10;           // base member 10%
    if (billAmount >= 5000) {
        discount += billAmount * 0.05;      // extra 5% for big bills
    }
} else {
    System.out.println("No member discount");
}
System.out.println("Total discount: Rs " + discount);

Use switch — match fixed membership or coupon codes

Each membership type maps to a fixed discount. When the variable has a small set of known string values, switch is clearer than a long else-if chain.

switch — membership type
double billAmount = 6000;
String membershipType = "GOLD";
double discountPercent;

switch (membershipType) {
    case "GOLD":
        discountPercent = 20;
        break;
    case "SILVER":
        discountPercent = 15;
        break;
    case "REGULAR":
        discountPercent = 5;
        break;
    default:
        discountPercent = 0;
        break;
}
double discount = billAmount * discountPercent / 100;
System.out.println("Discount: Rs " + discount);

Quick chooser (same mall example)

  • if — festival bonus only (optional extra)
  • if-else — member gets discount, non-member does not
  • else-if — discount by bill range (2000 / 5000 / 10000 slabs)
  • nested if — member discount, then extra if bill is high
  • switch — GOLD / SILVER / REGULAR fixed percentages
Real checkout systems often combine structures: a switch for membership tier, an if for festival sale, and an else-if ladder for bill slabs. Start with the clearest structure for each rule, then merge results into one final discount variable.
